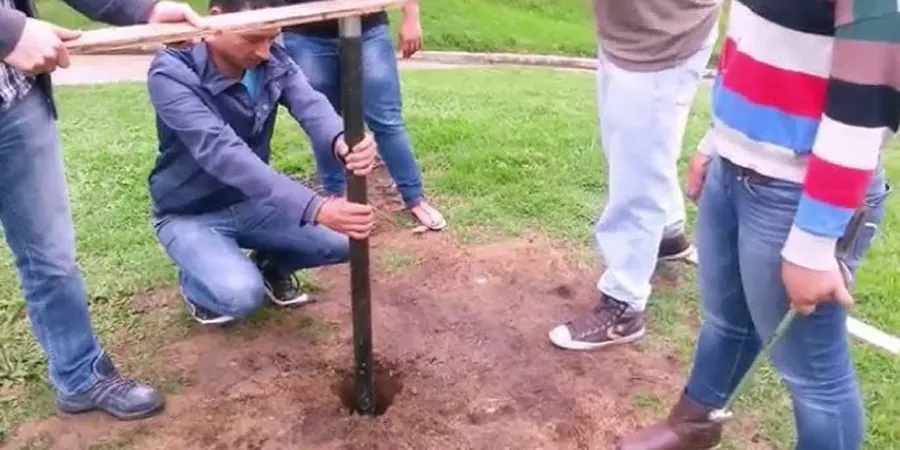

We’ve seen it time and again on Ballarat construction sites: you’re excavating for a new residential subdivision on the western edge, and the auger brings up a wet, grey clay that feels soft even to the touch. That’s when you need hard numbers, not guesswork. Our field vane shear test (VST) measures the undrained shear strength of these saturated clays directly in situ, giving you the data required to design shallow foundations or temporary excavations without over-conservative assumptions. In Ballarat’s lacustrine deposits, where soft layers can sit just metres below fill, the vane test provides a quick and reliable baseline before moving to more detailed profiling with a dilatometer test or sampling for advanced triaxial work.
In Ballarat’s lacustrine clays, peak undrained shear strength often ranges from 20 to 60 kPa, with sensitivity ratios between 2 and 5.
Technical details of the service in Ballarat
- Peak torque (Nm) and calculated undrained shear strength (kPa)
- Remoulded shear strength for sensitivity ratio
- Depth of vane insertion and water table position
- Torque head calibration factor verified before each test
Typical technical challenges in Ballarat
Ballarat’s climate — cool winters with 600–700 mm annual rainfall — keeps the water table high in many low-lying suburbs, and the underlying basalt-derived clays can undergo seasonal shrink-swell cycles. If you rely solely on laboratory shear tests from disturbed samples, you risk underestimating the in-situ strength of these sensitive clays, leading to over-designed footings or, worse, unexpected settlement during the wet season. Performing a field vane shear test on site captures the real undrained behaviour under current moisture conditions, reducing the chance of differential movement in slabs and pavements across Ballarat’s residential estates.
Our services
Beyond the standard field vane test, our Ballarat laboratory offers complementary services that build on the vane data for complete geotechnical characterisation:
Undrained Strength Profiling
Detailed VST profiles at 0.5 m intervals through soft clay layers, providing continuous undrained shear strength data for foundation and slope design.
Sensitivity Assessment
Peak and remoulded vane testing to calculate sensitivity ratio, critical for evaluating liquefaction potential and remoulding effects during excavation.
VST for Embankment Stability
In-situ shear strength measurements for soft ground beneath new road embankments or fill areas, directly feeding into stability analysis.
Combined VST & Sampling
Vane testing paired with thin-walled tube sampling at adjacent depths for laboratory triaxial or direct shear correlation, giving you a complete picture.
Frequently asked questions
What is the difference between a field vane shear test and a laboratory triaxial test?
The field vane test measures undrained shear strength in situ, preserving the soil's natural structure, moisture content, and stress history. A laboratory triaxial test requires undisturbed sampling, which can disturb sensitive clays and may not represent actual field conditions. In Ballarat's soft alluvial clays, the vane test often gives lower and more realistic strength values than triaxial tests on sampled material.
How deep can the vane test be performed in Ballarat soils?
We routinely test down to 10 metres in Ballarat using standard extension rods, though depths up to 15 metres are achievable with additional equipment. The practical limit is often governed by the presence of dense sand or gravel layers — the vane cannot penetrate those materials. Our team assesses the soil profile from borehole logs before deciding on maximum test depth.
How much does a field vane shear test cost in Ballarat?
A typical VST program in Ballarat ranges from AU$840 to AU$2,420 depending on the number of test depths, site access conditions, and reporting requirements. This includes mobilisation, on-site testing by a NATA-accredited technician, and a certified test report with raw torque data and interpreted shear strength profiles. Multiple tests at the same site may reduce the per-test rate.
What standards govern the field vane test in Australia?
The primary standard is AS 1726 – Geotechnical Site Investigations, which references AS 1289.6.2.1 for the vane test procedure. Additionally, AS 1289.6.2.1 provides the Australian-specific method for determining shear strength by field vane. Our laboratory is NATA-accredited for this test method, and all equipment is calibrated to national standards.
