The geocell design team in Ballarat begins every project by assessing the local subgrade conditions using a portable plate load tester mounted on a utility vehicle. Ballarat sits on a complex sequence of Quaternary basalts and Tertiary deep leads, so the soil profile can shift dramatically within a single block. The cellular confinement system is then dimensioned based on the in-situ CBR and the expected traffic load, with cell depths ranging from 100 mm to 300 mm depending on the fill material and axle count. Before rolling out the geocell layout, we cross-check the design against the bearing capacity of the foundation layer using a plate load test to confirm that the subgrade can support the confinement stresses without excessive settlement.
A 100 mm geocell layer in Ballarat can reduce subgrade stress by 70 percent compared to unreinforced granular fill under identical traffic loading.
Technical details of the service in Ballarat
Demonstration video
Typical technical challenges in Ballarat
Ballarat expanded rapidly during the 1850s gold rush, and many of the original roads and retaining walls were built directly on uncontrolled fill from mining operations. Those legacy fills are still present under current development sites, and they exhibit variable compaction and a high potential for differential settlement. A poorly designed geocell system can transfer the load to these weak zones and trigger a bearing failure that propagates across the pavement. The geocell design must include a thorough investigation of the fill depth and type, and the confinement geometry should be adjusted to spread the load over a wider area so that the bearing pressure stays below the allowable limit of the underlying material.
Our services
Our geocell design service in Ballarat covers three key applications, each adapted to the local soil and hydrology conditions.
Road and Pavement Subgrade Stabilization
We design geocell mattresses for access roads, haul roads, and permanent pavements. The system reduces the required granular base thickness by up to 50 percent while controlling rutting under repeated axle loads. Infill materials include crushed rock, sand, or recycled concrete aggregate, selected to match the project's CBR target.
Slope and Embankment Erosion Control

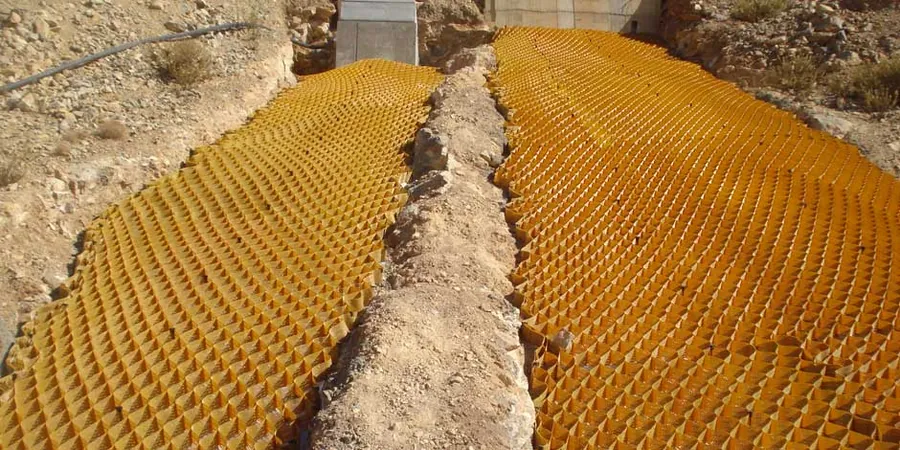

On slopes steeper than 1:3, geocells are used to confine topsoil or vegetated fill and prevent surface erosion during heavy rainfall. The design includes an anchor system at the crest and a drainage outlet at the toe to avoid hydrostatic pressure buildup behind the cells.
Retaining Wall and Bridge Abutment Backfill
For vertical retaining structures, geocell layers act as a compressible inclusion that reduces lateral earth pressure on the wall. The confinement also limits settlement of the backfill, which is critical when the wall supports a bridge approach slab or a building footing.
Frequently asked questions
How much does geocell design cost for a typical residential driveway in Ballarat?
For a standard residential driveway of about 60 m², the geocell design and supply package typically costs between AU$1,360 and AU$3,830. The final price depends on the cell height, the type of infill material, and whether a drainage layer is required. A site visit and a plate load test are usually included in the quote.
What is the minimum subgrade CBR required for a geocell pavement in Ballarat?
A subgrade CBR of at least 2 percent is recommended for geocell-reinforced pavements in Ballarat. If the in-situ CBR is below 1.5 percent, we usually specify a 150 mm sacrificial layer of coarse gravel under the geocells to improve the working platform. The design follows the Austroads pavement design procedure with the confinement factor derived from triaxial tests on the specific infill.
Can geocells be used on the steep slopes around Lake Wendouree?
Yes, geocells are particularly effective on the 1:2 slopes found around Lake Wendouree. The cells are anchored with U-shaped pins at 1 m centers along the crest and the toe, and the infill is typically a 50/50 blend of topsoil and crushed scoria to support native grass growth. The design must also include a subsurface drain at the toe to intercept groundwater seepage from the lake.
How long does a geocell design take from site investigation to final drawing?
A full geocell design for a typical Ballarat project takes 7 to 14 working days from the date of the site investigation. The process includes a plate load test to determine the subgrade modulus, a CBR test on the subgrade, and then the confinement analysis. The deliverable is a set of shop drawings with cell layout, anchor details, and a material specification sheet.
