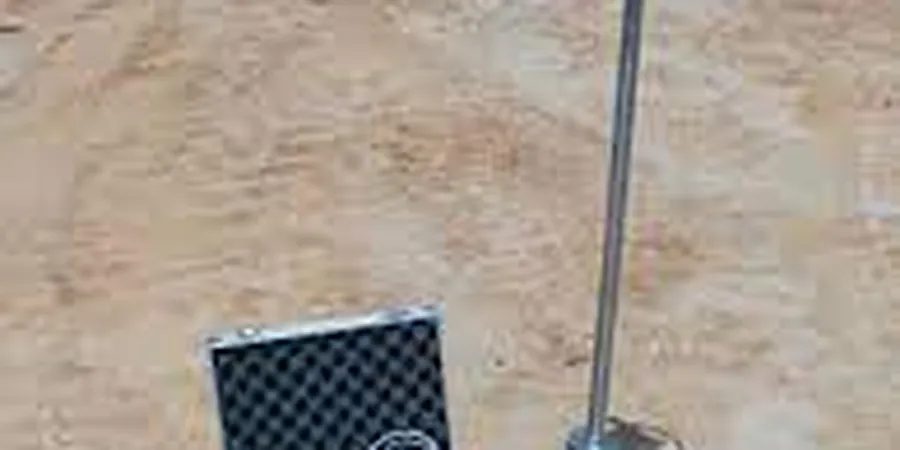

The plate load test crew sets up on site with a hydraulic jack, reaction frame, and calibrated dial gauges, usually on a level subgrade near the footing zone. In Ballarat, where much of the urban soil profile consists of stiff Quaternary basalts overlying weathered sedimentary bedrock, the test directly measures the bearing capacity and modulus of subgrade reaction at the planned foundation depth. A 300 mm or 450 mm diameter steel plate is loaded in increments, and each load step is held until settlement stabilises. The data yields a load-settlement curve that defines the allowable bearing pressure for the design. Engineers often combine this field result with a soil classification from laboratory index tests to confirm that the assumed soil parameters are representative of the actual conditions.
A properly conducted plate load test in Ballarat’s basaltic clays can reduce foundation overdesign by 20–30% compared to conservative table values.
Technical details of the service in Ballarat
- Bearing pressure at 5 mm and 10 mm settlement
- Modulus of subgrade reaction (k-value) for slab design
- Elastic modulus of the soil (E) from the linear portion of the curve
- Ultimate bearing capacity extrapolated from the load-settlement plot
Typical technical challenges in Ballarat
AS 4678 requires that the design bearing pressure for earth retaining structures be verified by field testing when the soil profile shows more than 20% variation in consistency across the site. In Ballarat, the transition from stiff clay to weathered basalt can be erratic, and a single plate load test may miss localised softer zones. The real risk is underestimating settlement under service loads, especially for large footings or raft slabs. We always recommend at least one test per 500 m² of foundation area and, where soft patches are suspected, a complementary CBR test for pavement subgrade assessment.
Our services
Our Ballarat geotechnical office provides the following plate load test services, each tailored to the local ground conditions.
Field Plate Load Test (PLT)
On-site testing using hydraulic jack and reaction frame, with continuous settlement monitoring via dial gauges. Results include bearing pressure vs. settlement curve, k-value, and allowable bearing capacity per AS 4678.
Modulus of Subgrade Reaction (k-value) Determination
Specific to slab-on-grade and pavement design. The k-value is derived from the load-settlement plot and reported together with the elastic modulus for use in structural analysis.
Bearing Capacity Verification for Shallow Foundations
For strip footings, pads, and raft slabs. The test is performed at the proposed founding depth, and the results are compared against the design assumptions to confirm the geotechnical capacity.
Frequently asked questions
How does the plate load test differ from the standard penetration test (SPT) for foundation design?
The plate load test directly measures bearing capacity and settlement under a static load, providing site-specific k-values and elastic moduli. The SPT gives an indirect estimate of soil strength and density via blow counts. In Ballarat’s stiff clays, the PLT is preferred for shallow foundation verification because it captures the actual load-deformation behaviour, whereas SPT is more suited to profiling deeper strata.
What is the typical cost range for a plate load test in Ballarat?
The cost for a single plate load test in Ballarat generally falls between AU$1.360 and AU$2.060, depending on plate size, number of load increments, and site access conditions. Multiple tests on the same site attract a reduced per-test rate.
When should I use a 300 mm plate versus a 450 mm plate?
The 300 mm plate is standard for most soils and provides a representative bearing area for footings up to 1.5 m wide. The 450 mm plate is recommended when the subgrade is coarse (e.g., gravelly basaltic fill) or when the design footing width exceeds 2.0 m, as it better averages local variability. Both plates follow the same loading procedure per AS 4678.
