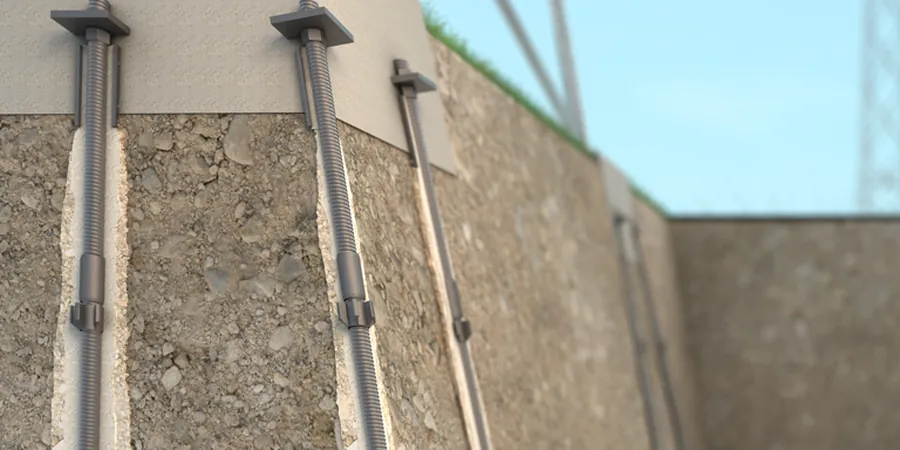

In Ballarat, the variable depth of weathered basalt over the Yarrowee River alluvium often forces designers to look beyond conventional shallow foundations. Micropile design becomes the practical alternative when access is tight or the bearing stratum sits deeper than standard piling can reach economically. The city's goldfields legacy left irregular underground voids and old workings, so before committing to a micropile layout we typically cross-reference borehole logs with historical mining records. For projects adjacent to sensitive structures, combining micropile design with monitoreo de excavaciones provides real-time assurance that ground loss stays within tolerable limits during installation. The approach works well where vibration from driven piles would risk damage to nearby heritage masonry.
Micropile design in Ballarat must reconcile historical mining voids with reactive clays — a dual constraint rare in Australian regional cities.
Technical details of the service in Ballarat
Typical technical challenges in Ballarat
Ballarat's mean annual rainfall of 690 mm combined with clay soils that can exhibit up to 90 mm of surface shrinkage creates a recurring risk for micropile cap displacements. If the pile group is not structurally tied with a stiff grade beam, differential heave between adjacent piles can induce tensile cracks in the supported structure. Furthermore, undetected historical stopes from the 1850s gold rush can cause sudden loss of grout during injection, wasting material and compromising bond length. A pre-construction cavity survey using ground-penetrating radar reduces this uncertainty before mobilising the drilling rig.
Our services
Our micropile service covers two typical scenarios encountered in Ballarat projects: load testing verification and design for low-headroom retrofits.
Static Load Testing of Micropiles
Bidirectional (Osterberg cell) or maintained-load tests up to 1.5 times the design working load. We provide a certified load-settlement curve and elastic shortening analysis per AS 2159 Appendix C.
Low-Headroom Micropile Design
Solutions for basement underpinning and historic building strengthening where headroom is below 3.5 m. Modular hydraulic rigs allow installation inside existing structures without structural demolition.
Frequently asked questions
What is the typical working load range for a single micropile in Ballarat?
Depending on the founding stratum — weathered basalt or fractured greywacke — a 150 mm diameter micropile can sustain working loads between 300 kN and 800 kN. Higher capacities require larger casing or multiple bars.
How does the presence of historical mining voids affect micropile design?
Voids cause grout loss and reduce bond length unpredictably. We require either a pre-drill cavity survey or specify a full-length casing to isolate the grout column from open cavities. This adds roughly 15–20% to installation time but guarantees integrity.
What corrosion protection is recommended for micropiles in Ballarat's reactive clays?
Class 2 protection per AS 2159:2009 is standard: a minimum 5 mm sacrificial steel thickness plus cementitious grout cover of at least 20 mm. For sites with pH below 5.5, we specify epoxy-coated bars.
How much does micropile design typically cost in Ballarat?
The design and testing package for a small residential project (6–10 piles) generally ranges from AU$2.400 to AU$6.140, depending on the number of proof tests and the complexity of the ground model. Larger commercial spreads reduce the per-pile cost.
Can micropiles be installed in low-headroom conditions common in Ballarat's heritage buildings?
Yes. Modular hydraulic rigs operating under 3.0 m headroom are standard. We have completed installations inside 1880s bluestone warehouses on Lydiard Street where access was limited to a single 2.4 m high doorway.
