Seismic Foundation Design in Ballarat

In Ballarat, we often see designs that treat seismic loads as an afterthought, yet the region’s variable geology — from deep clay profiles near Lake Wendouree to rocky ridges in the south — demands a tailored approach. The 2021 magnitude 5.9 Woods Point earthquake reminded everyone that even moderate intraplate events can cause unexpected damage. That is why we start every seismic foundation design with site-specific ground investigation, combining boreholes, in-situ testing, and dynamic analysis to match the soil-structure interaction accurately. Before finalising any foundation layout, we also cross-check against response spectrum analysis to capture the actual amplification behaviour of the local strata.

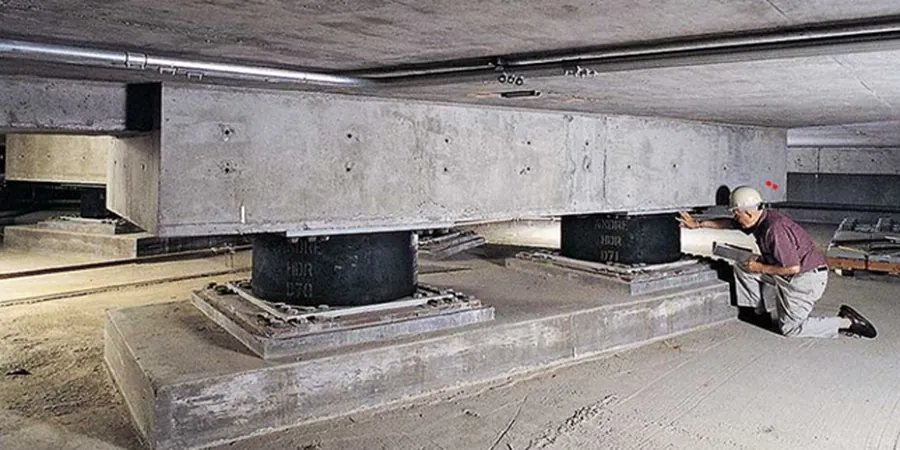

Illustrative image of Cimentaciones sismicas in Ballarat

Even moderate earthquakes in Victoria can double spectral accelerations on soft soils — site-specific seismic design is non-negotiable for Ballarat.

Technical details of the service in Ballarat

A common mistake we see in Ballarat is assuming a standard pad footing will work everywhere, ignoring the fact that stiff clay crusts can sit atop softer alluvial layers that amplify ground motion. Our seismic foundation design process addresses this directly: we first classify the site per AS 1170.4 using measured shear-wave velocity profiles, then we evaluate bearing capacity under cyclic loading rather than static values alone. For structures with higher ductility demands, we integrate deep soil mixing to improve the stiffness of problematic layers, and we always verify settlement tolerances with an as-settlement analysis to avoid differential movement during shaking. The result is a foundation that performs predictably under both gravity and seismic conditions.

Seismic Foundation Design in Ballarat

Parameter	Typical value
Peak Ground Acceleration (PGA)	0.08–0.12 g (AS 1170.4)
Site Subsoil Class	Class C–D (ballarat clay/laterite)
Allowable bearing pressure (seismic)	150–350 kPa after liquefaction check
Seismic shear modulus (Gmax)	15–80 MPa (derived from MASW)
Factor of safety (sliding/overturning)	1.5 under ultimate limit state

Typical technical challenges in Ballarat

A three-storey commercial building on Creswick Road was recently designed with shallow footings that looked fine for static loads, but the geotechnical report had overlooked the potential for cyclic softening in the underlying silty clay. During a moderate aftershock sequence the building experienced 20 mm of differential settlement — enough to crack shear walls and rack the frame. That scenario is exactly why seismic foundation design in Ballarat must incorporate site-specific cyclic triaxial testing and a proper assessment of strain-dependent stiffness degradation. Skipping that step can turn a routine project into an expensive rectification case.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.vip

Applicable standards: AS/NZS 1170.4:2007 (Structural design actions — earthquake actions), AS 1726:2017 (Geotechnical site investigations), NZS 3101:2006 (Concrete structures standard, seismic provisions)

Our services

We deliver two core service lines to support seismic foundation design in Ballarat, each adapted to local ground conditions and project scale.

Site-Specific Seismic Hazard Assessment

Combines shear-wave velocity profiling (MASW), borehole logging, and cyclic triaxial tests to determine site class, liquefaction potential, and design response spectra per AS 1170.4.

Seismic Foundation Modelling & Detailing

Finite-element analysis of shallow and deep foundations under dynamic loading, including soil-structure interaction, base isolation feasibility studies, and reinforcement detailing for ductility.

Frequently asked questions

How much does seismic foundation design cost in Ballarat?

For a typical residential or low-rise commercial project in Ballarat, the cost ranges from AU$2,180 to AU$5,930 depending on the number of boreholes, laboratory tests, and complexity of the structural model. A detailed quote is provided after a preliminary site walkover.

What soil conditions in Ballarat most affect seismic design?

The main concern is the heterogeneous mix of stiff clay crusts over softer alluvial layers, especially near waterways. These profiles can amplify ground motion by a factor of 1.5 to 2.5 relative to rock sites, which directly increases the base shear the foundation must resist.

Is liquefaction a risk in Ballarat?

Liquefaction potential is generally low because most soils have sufficient fines content and are not fully saturated at shallow depth. However, in low-lying areas like parts of Wendouree and Sebastopol, we always screen for it using the NCEER method and cyclic triaxial testing if needed.
